$54,900.00

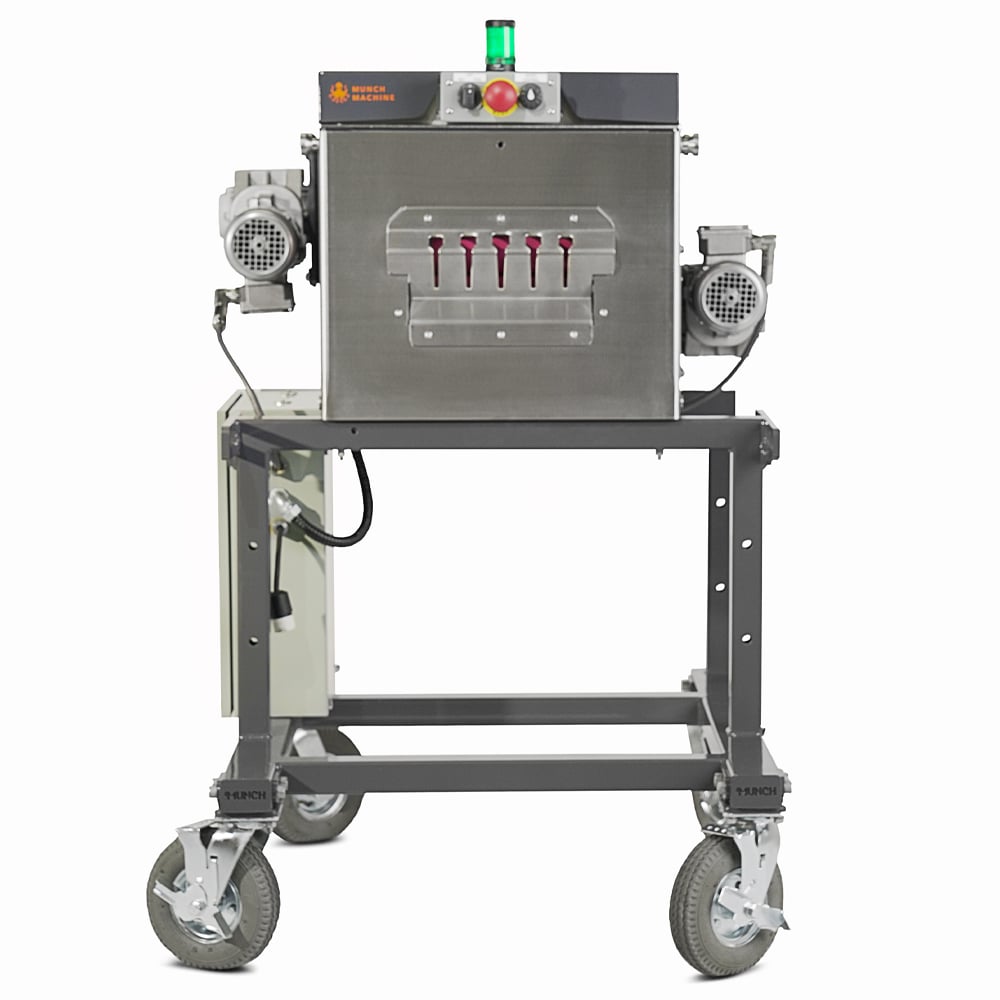

The Cluster Bucker sets a bold new standard for efficiency and throughput. The dual drive belts, combined with the new die plate design (both patent pending), let you buck much larger branch clusters. This means more buds are bucked with every branch feed, which increases throughput for each operator and decreases time and labor needed for harvest.
If you demand high throughput, maximum efficiency, and total reliability, the Cluster Bucker is built for you.
For a deep dive into what makes the Cluster Bucker such a unique and capable machine, check out the Buck University post.

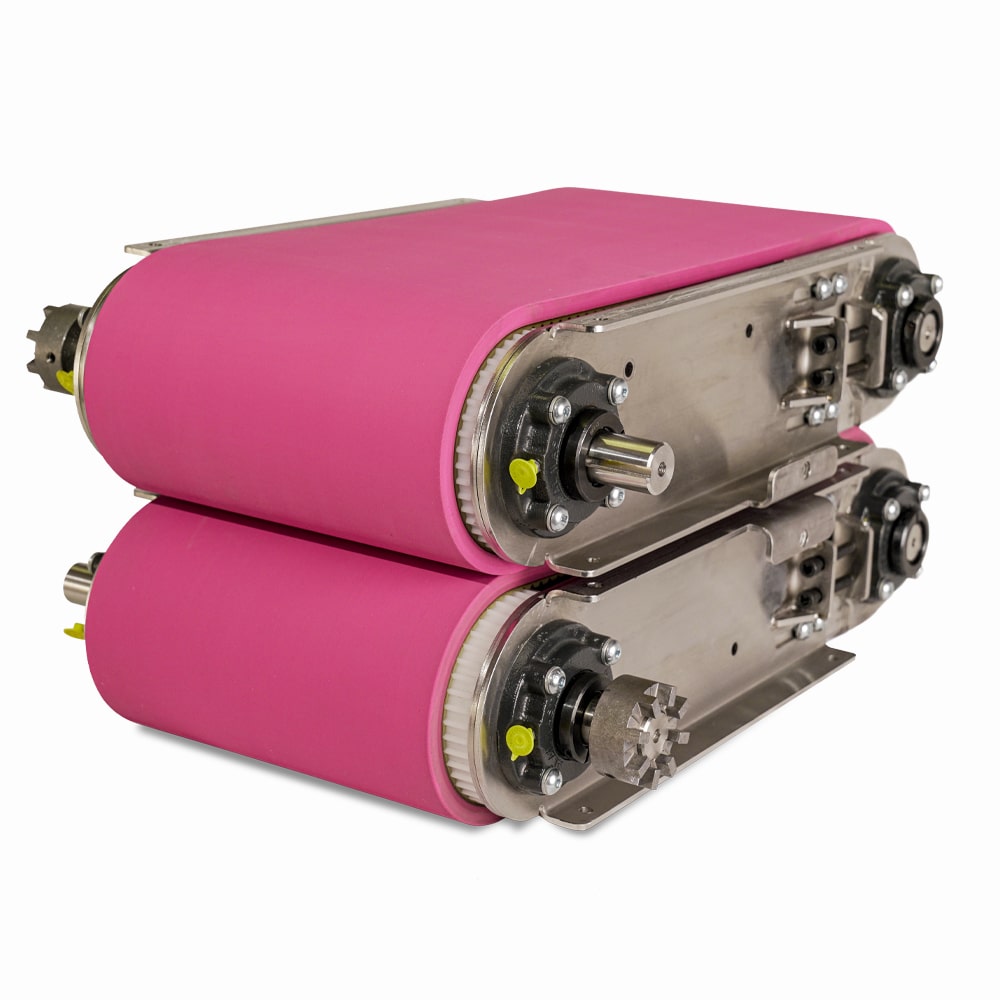

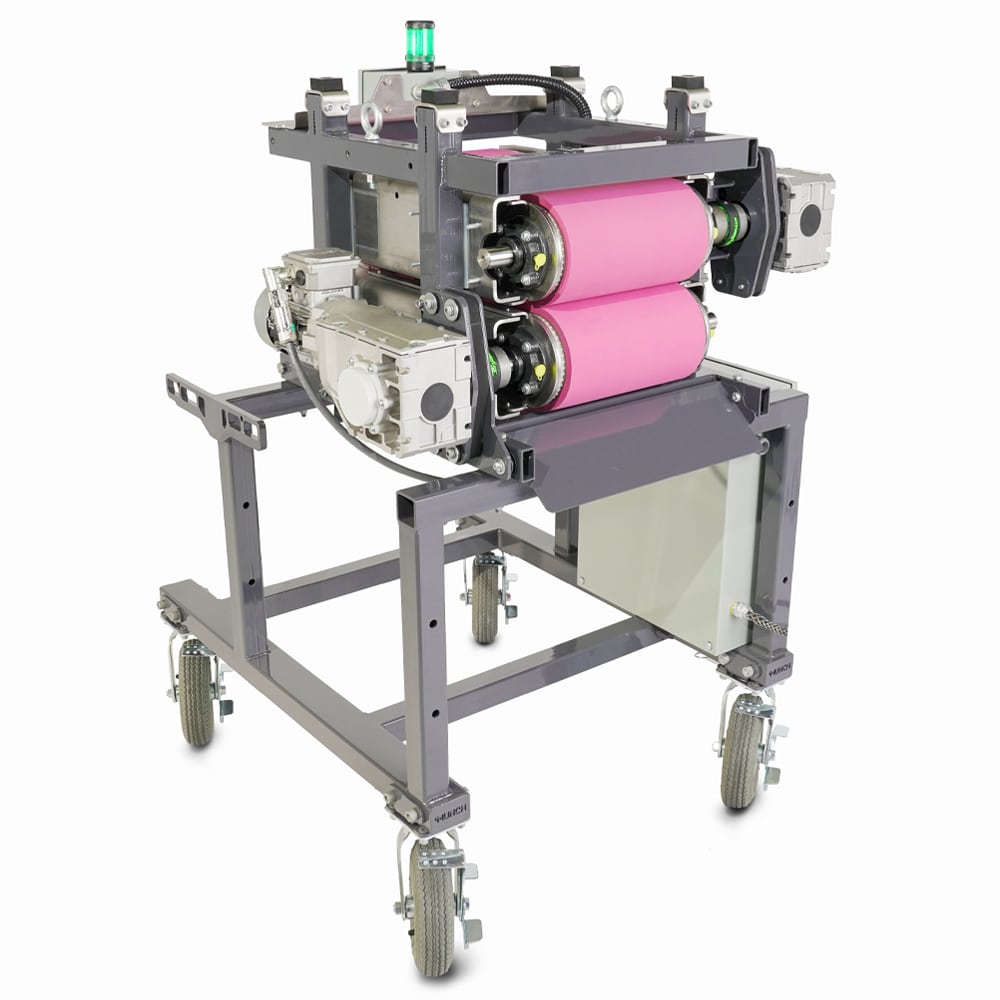

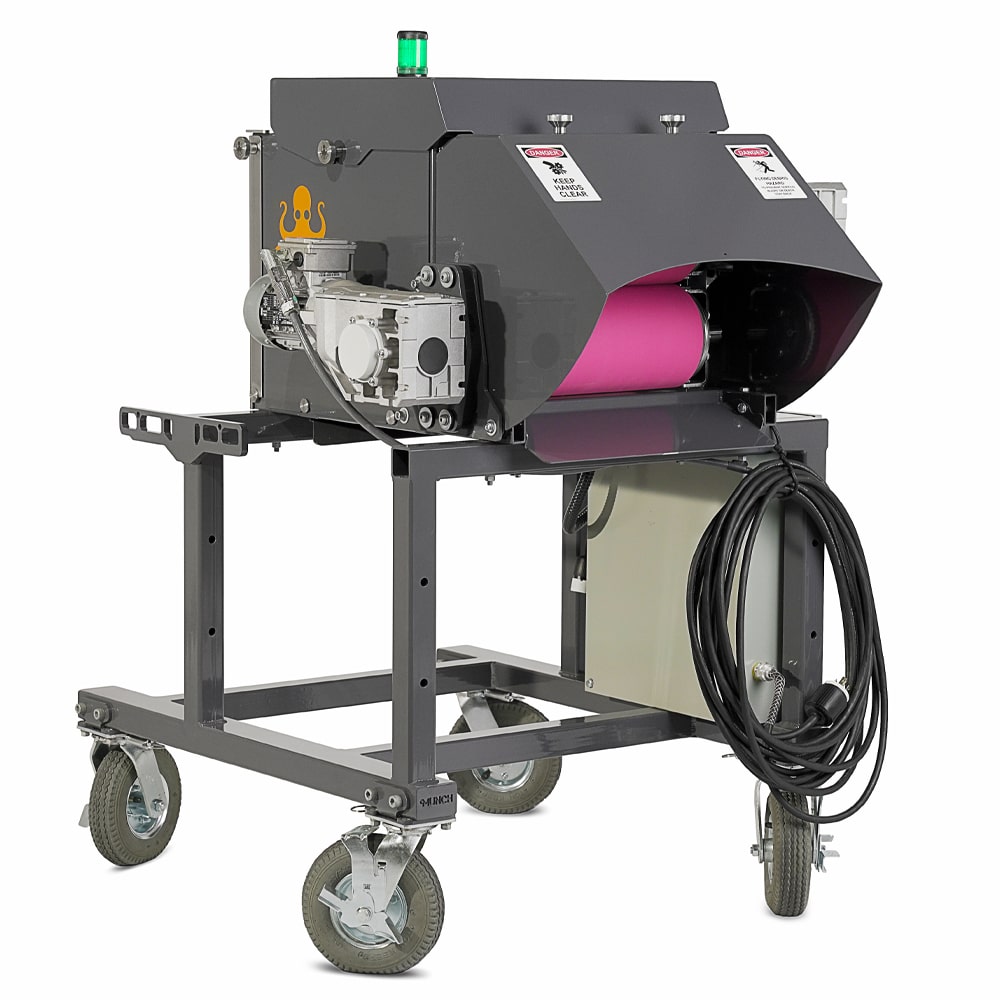

The heart of this beast is the new TANC drive system: Featuring belts instead of rollers, this unique patent-pending design lengthens the contact patch with stems 20-fold, increasing stem grip exponentially. No other machine even comes close to the grip of the Cluster Bucker.

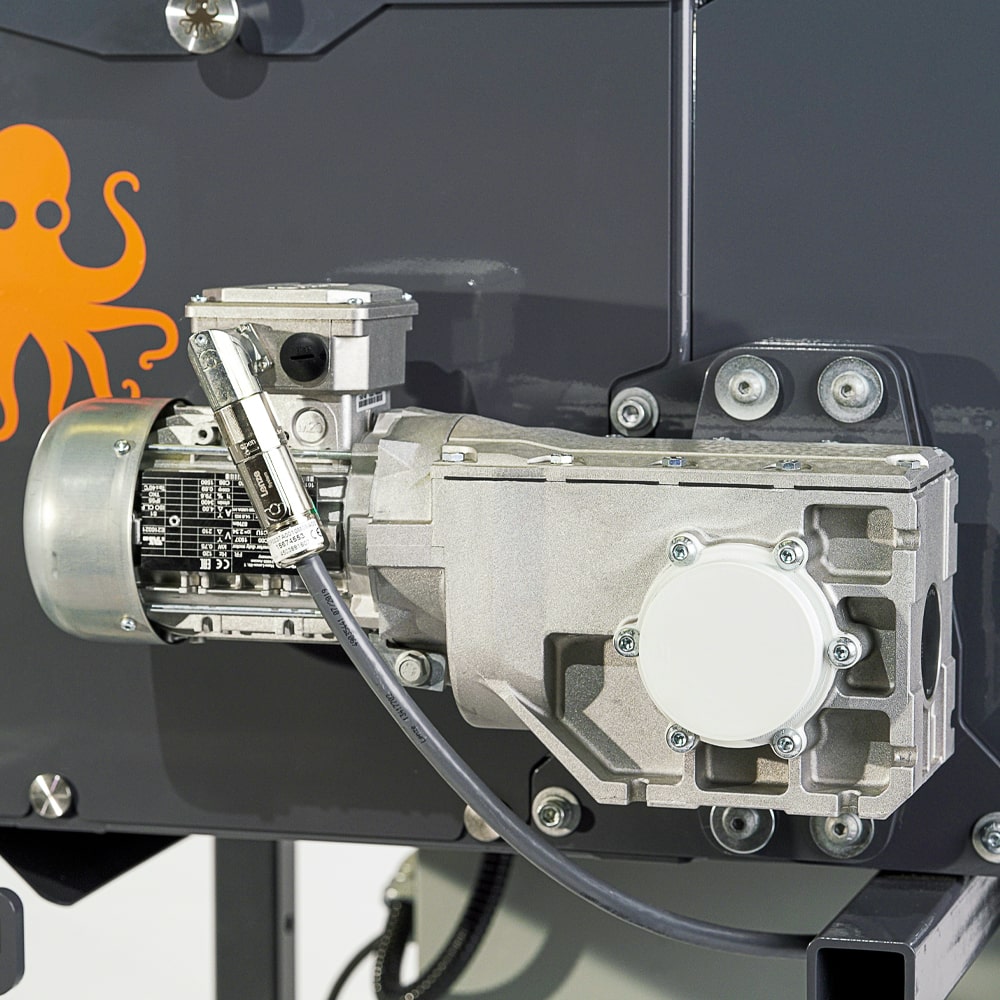

Dual 1 HP motors drive the belt cassettes, giving the machine the necessary grip and power to buck larger branches and branch clusters. As less branch breakdown and stem prep are necessary, the Cluster Bucker will buck more material with each pull, in less time, than any other bucker on the market.

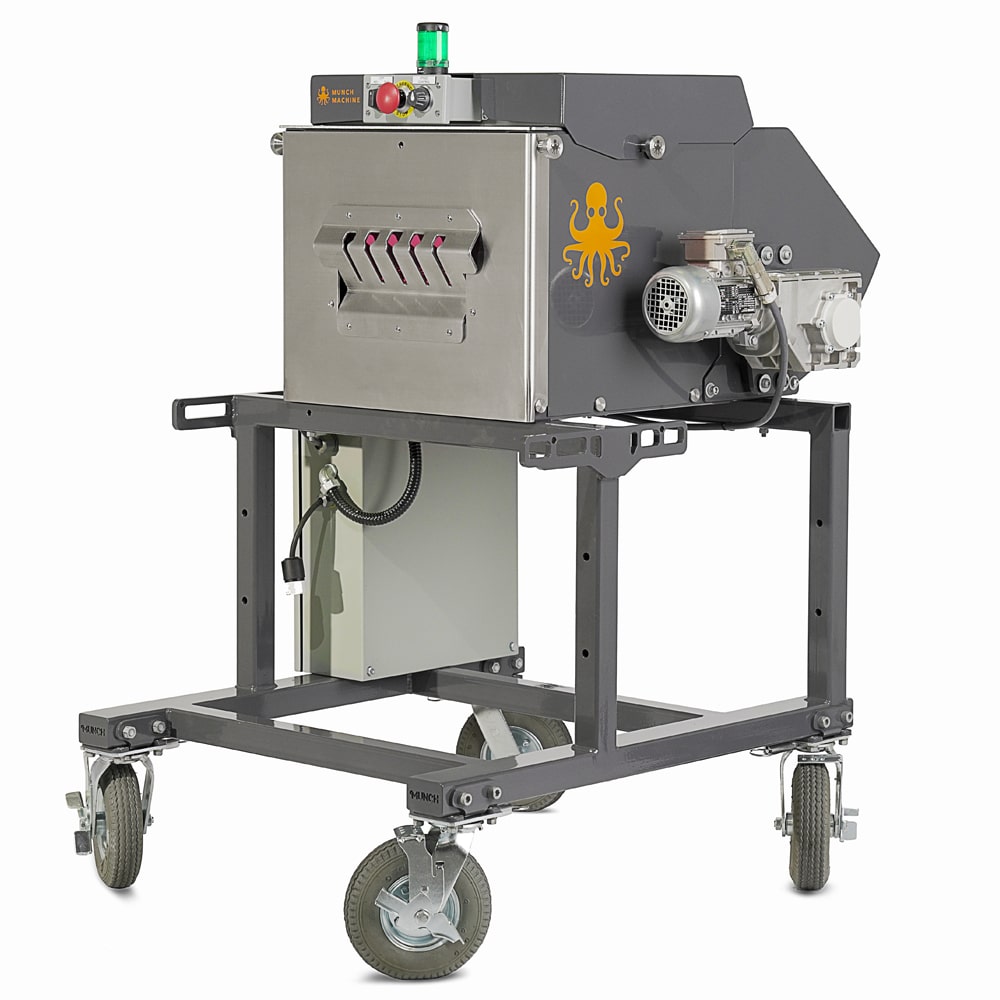

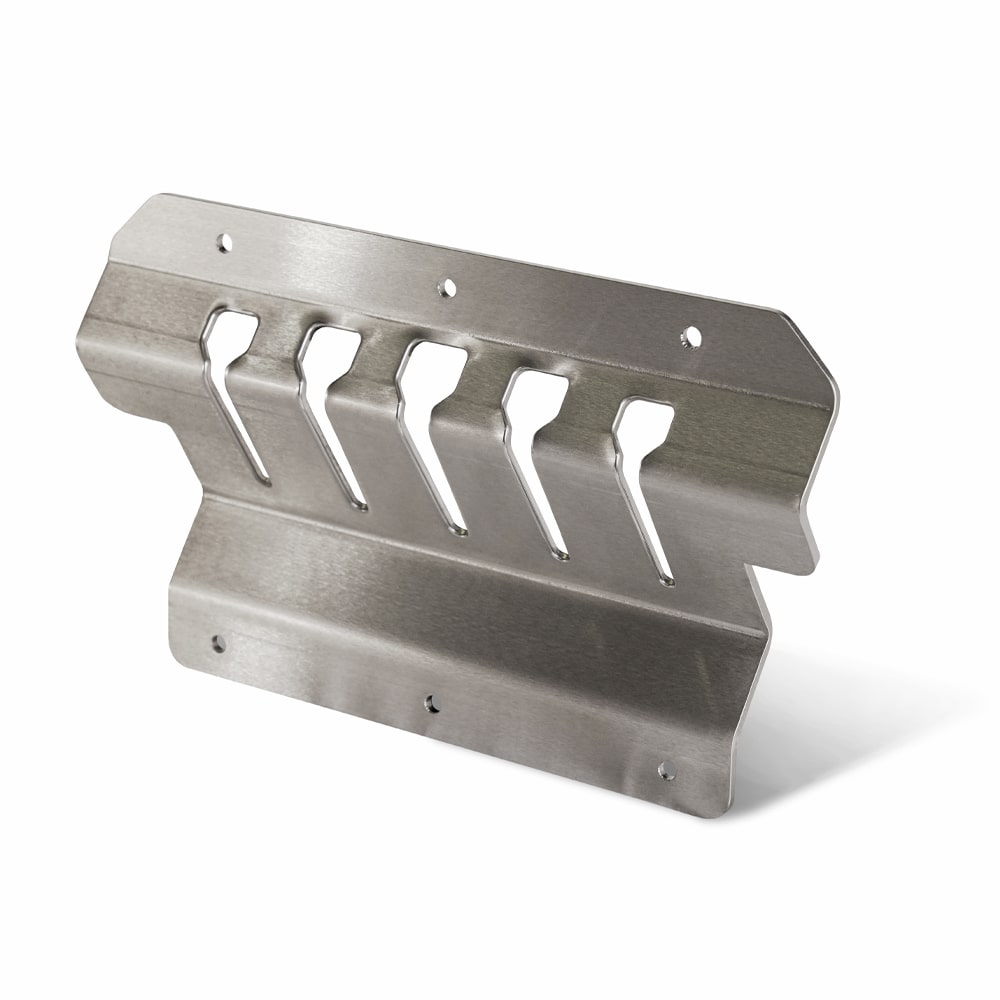

The keyhole style die plate (patent pending) features strategically placed holes that let gravity assist in pulling the branch cluster down and through the tapered slot. This new die plate is designed for those seeking the highest throughput possible.
If your goal is top-shelf flower, swap the keyhole style plate for the optional hole style plate and get the same beautiful flower quality as with our roller-driven buckers.
GMP - The easy to clean design of the Cluster Bucker fits perfectly into a GMP-compliant workflow. The bucked flower only interacts with the food-grade stainless steel faceplate. The powder coating, dual compound belts, and lubricants all meet or exceed FDA food-grade standards. UL & CSA - As our industry becomes more mainstream, compliance with governing agencies is essential. The Cluster Bucker meets UL and CSA standards.
Throughput is only 1 aspect of harvest efficiency. The Cluster Bucker also increases upstream efficiency by reducing branch breakdown and stem prep. This offers major time and labor savings before you even start bucking.
The Cluster Bucker is engineered for easy service and cleaning:

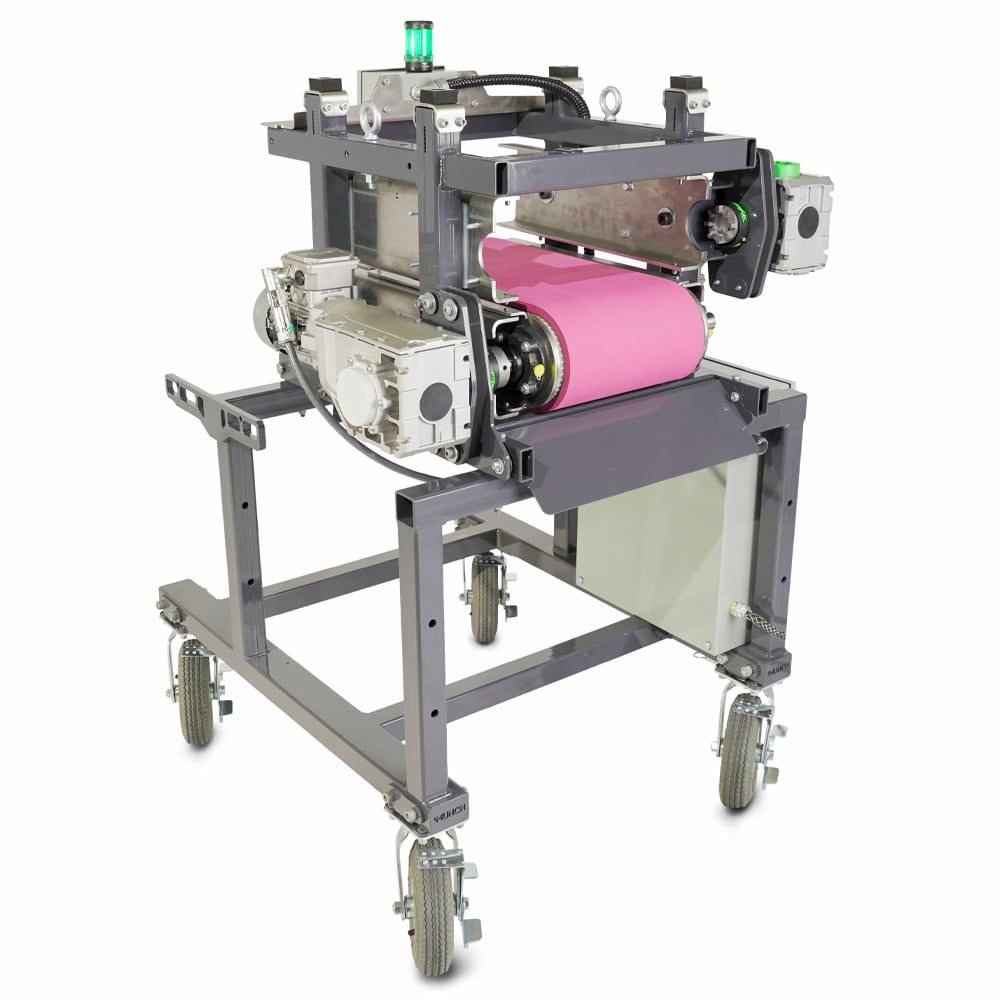

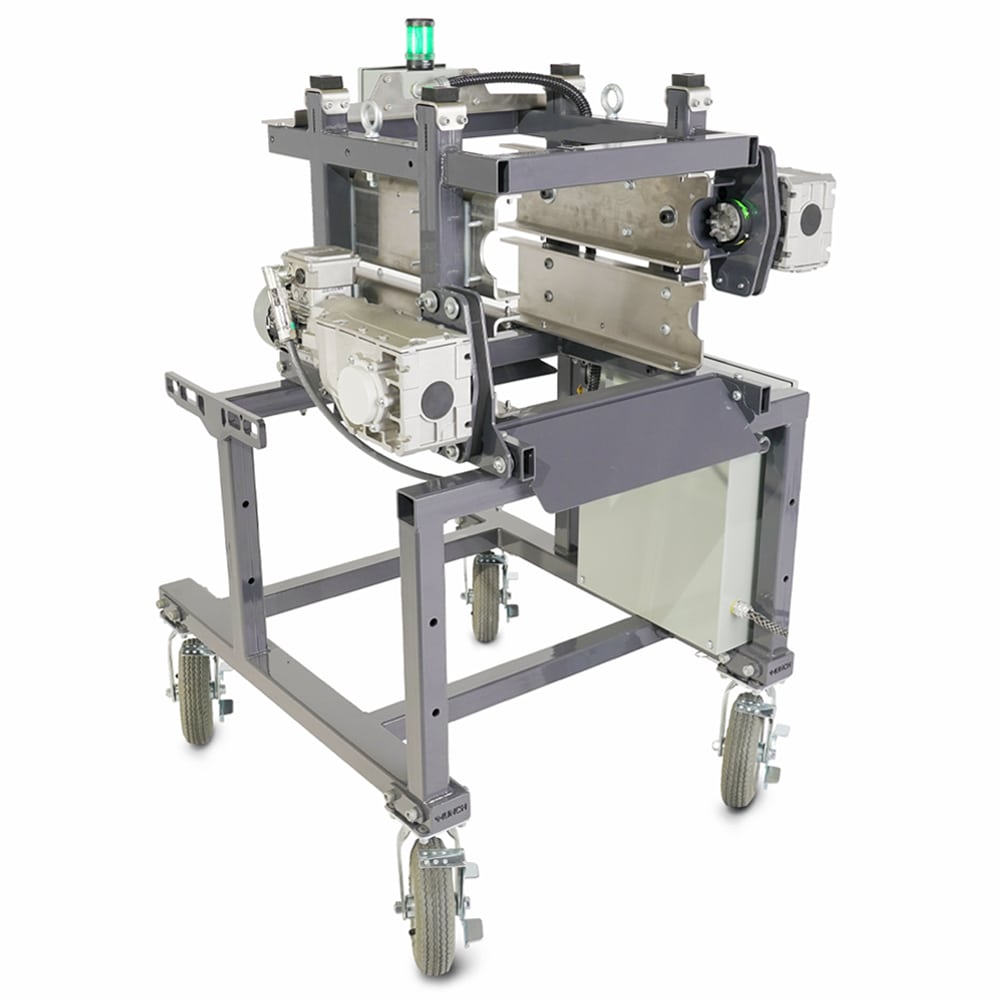

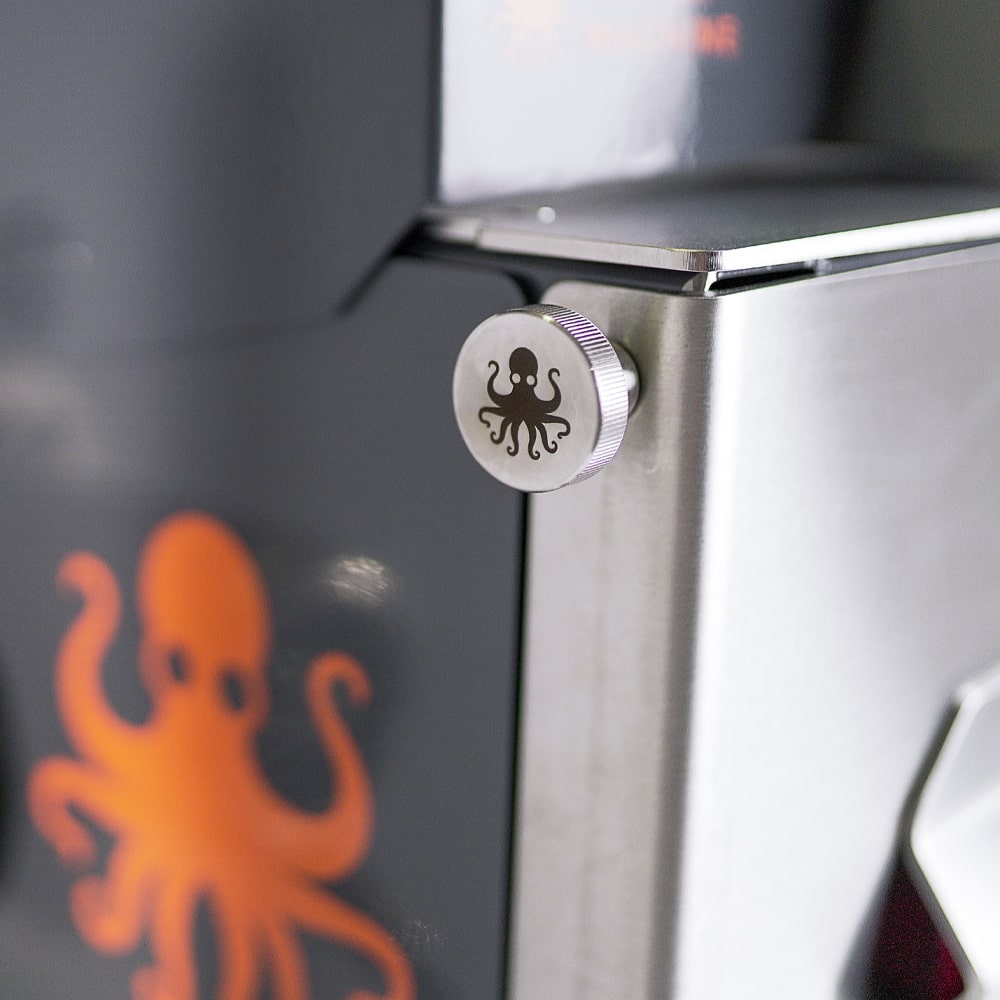

Protection hoods and faceplate feature tool-less removal. Each belt cassette is easily removed with only 4 fasteners. The entire unit is washdown rated for fast and easy cleaning. Dual compound belts reduce resin buildup and cleaning time.
| Cluster Bucker | |
|---|---|
| Power Requirements | 240V 60Hz |
| Current Draw | 20 Amp (30Amp Max Breaker Size) |
| GFCI Compatible | No |
| Generator Compatible | Yes (30 Amp, NEMA L14-30P - required) |

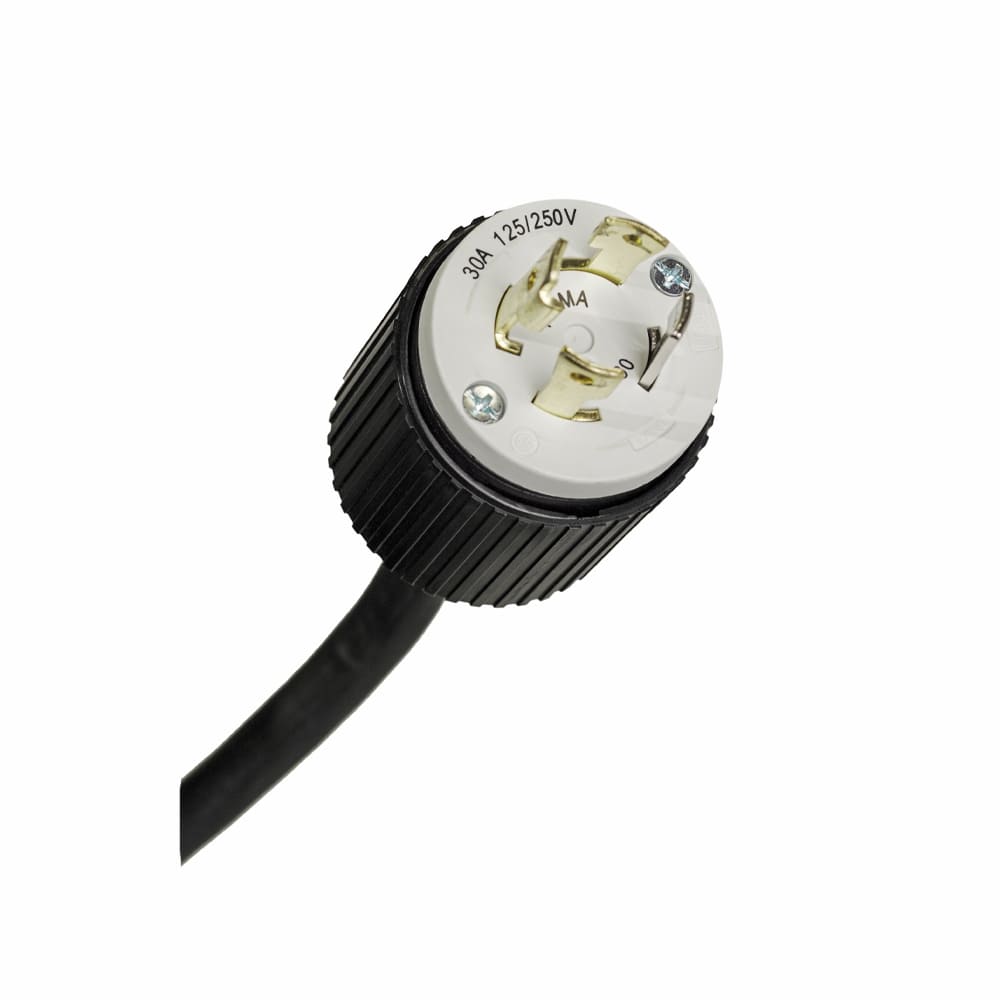

| Connector Plug | NEMA L14-30P |
| Accessory Power | 120V 10 Amp |
| Accessory Plug | NEMA 5-15R |

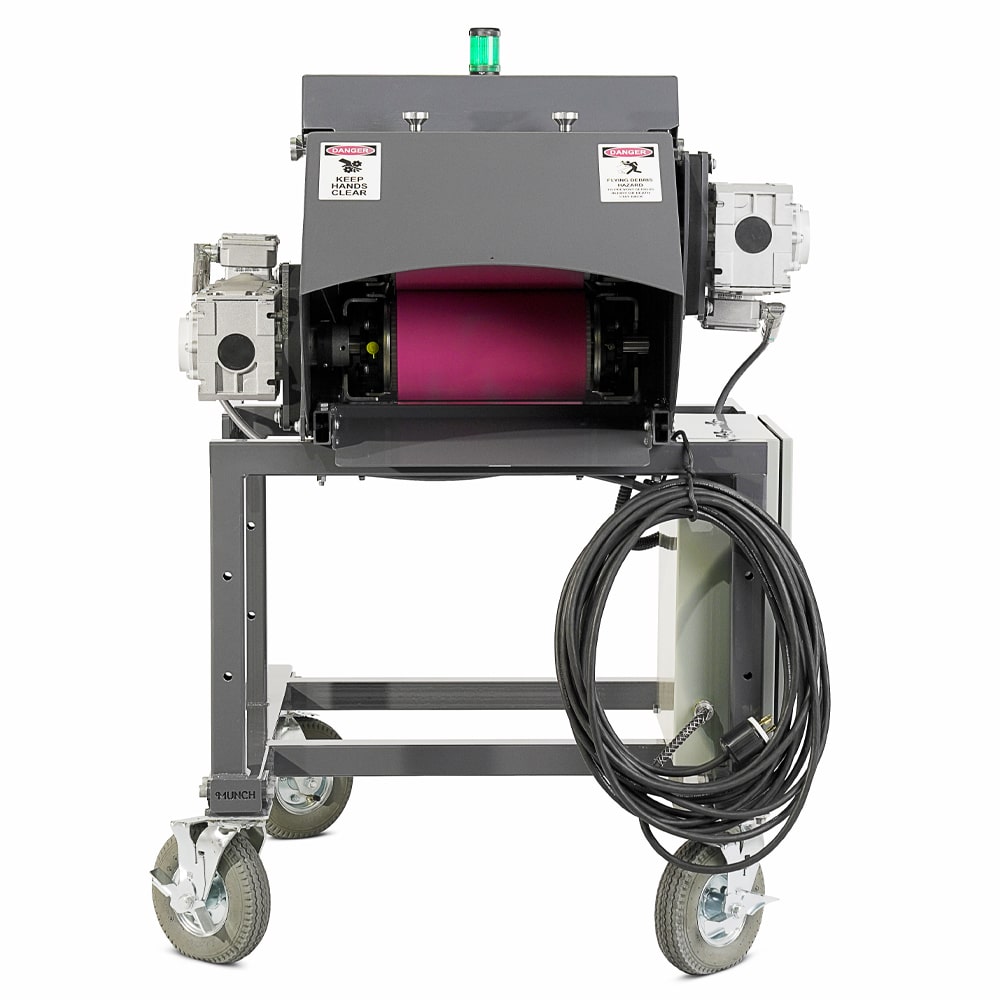

| Electrical Cord Length | 50' |
| Control Box Ratings | NEMA 4/12 |
| Motor | Dual 240V 1 HP |
| Die Plate Size Range | Kethole Die Plate (included), Round Hole Die Plate (Optional accessory) |
| Machine Dimensions | |
|---|---|
| Height | 57.6" |
| Width | 37" |
| Depth | 45" |
| Weight | 650lbs |
| Shipping Crate Dimensions | |
|---|---|
| Height | 66" |
| Width | 40'' |
| Depth | 48'' |
| Weight | 1000 lbs |
| Features | |
|---|---|
| Wet / Dry Capable | YES |
| Throughput Hydrated | 650 - 800 lbs per hour |
| Throughput (Small Plants) | 200 - 350 lbs per hour |
| Throughput Dry | N/A |
| Multiple Die Plates | YES |

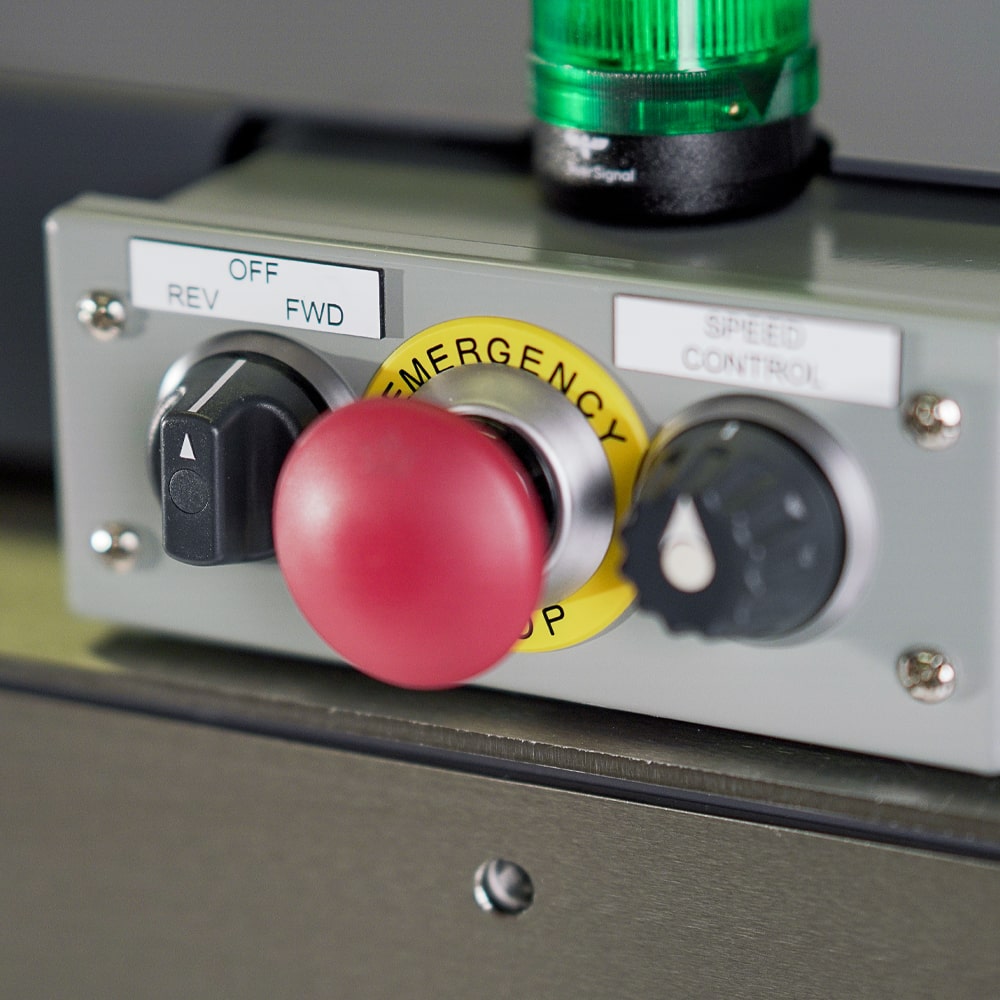

| Variable Speed Control | YES |
| Reverse Operation | YES |
| Safety Off Switch | YES |
| Conveyor Compatible | YES |
| Indoor / Outdoor Use | YES |
| Duty Cycle | Continuous |
| Washdown Electronics | YES |
| GMP Compliant | YES |
| 304 Stainless Steel | FDA Food Grade |
| Belts | FDA Food Grade Urathane and Natural Rubber |
| Lubricants | FDA Food Grade |
| Powder Coating | FDA Food Grade |
| UL Certified | YES |
| CSA Certified | YES |
| Warranty | 5 Year |
Munch Machine is so confident in the reliability and durability of our products, we offer the best warranty in the business: 5 years. Excellent customer service and support is our #1 priority.
